 Model |
Thru-Hole Dia (mm) | Stroke (mm) | Jaw Stroke (mm) | RPM | Weight (KG) |
|---|---|---|---|---|---|
| OU06A | 42 | 15 | 14 | 3000 | 13.3 |
| OU08A | 52 | 20 | 23.1 | 2500 | 22.5 |
| OU10A | 75 | 20 | 23.1 | 2000 | 30.8 |
|

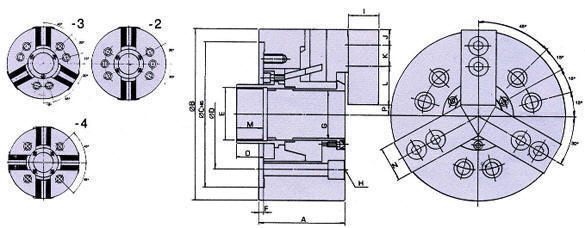

Model |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | Omax | Omin | Pmax | Pmin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OU06A | 83 | 165 | 140 | 104.8 | M55 x 2.0 | 5 | 42 | M8 | 36 | 15 | 20 | 37 | 20 | 32 | 10 | -0.5 | 10.5 | 3.5 |
| OU08A | 95 | 205 | 170 | 133.4 | M60 x 2.0 | 5 | 52 | M12 | 38 | 24 | 25 | 46 | 21.5 | 35 | 15 | -2 | 7.5 | -4.04 |
| OU10A | 100 | 254 | 220 | 171.4 | M85 x 2.0 | 5 | 75 | M16 | 42 | 30 | 30 | 50 | 30 | 40 | 8.5 | -11 | 17 | 5.45 |
