| P/N | Jaw Stroke (Dia. MM) |
Plunger Stroke (MM) |
Gripping Dia(MM) Max Min |
Max Draw Bar Pull (kgf) |
Gripping Force (Kgf) |
Max Speed (RPM) |
Weight (kg) |
GD² (kgf M²) |
|
|---|---|---|---|---|---|---|---|---|---|
| PL-6 | 13 | 18 | 165 | 20 | 1500 | 3300 | 4000 | 11 | 0.14 |
| PL-8 | 16 | 22 | 210 | 22 | 3000 | 6600 | 4000 | 21 | .046 |
| PL-10 | 18 | 25 | 250 | 25 | 3500 | 7500 | 3000 | 33 | 1.06 |
| PL-12 | 20 | 28 | 300 | 28 | 4500 | 9900 | 2500 | 55 | 2.54 |

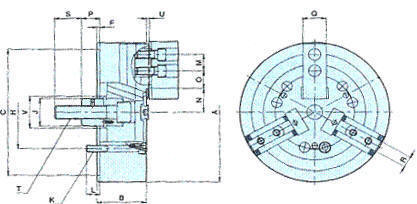

| Type | 6 | 8 | 10 | 12 | Type | 6 | 8 | 10 | 12 |
|---|---|---|---|---|---|---|---|---|---|
| A | 165 | 210 | 254 | 304 | O Max | 18 | 30 | 40.5 | 45 |
| B | 63 | 77 | 85 | 97 | O Min | 7.5 | 13.5 | 15 | 15 |
| C (H6) | 140 | 190 | 230 | 280 | P Max | 29 | 34 | 44 | 50 |
| F | 5 | 5 | 5 | 5 | P Min | 29 | 34 | 44 | 50 |
| H | 104.77 | 13335 | 133.35 | 171.45 | Q | 11 | 12 | 19 | 22 |
| J | 32 | 38 | 50 | 52 | R | 12 | 16 | 18 | 21 |
| K | 6-M10 | 6-M12 | 6-M12 | 6-M16 | S | 36 | 36 | 46 | 50 |
| L | 17 | 21 | 23 | 25 | T | M16 x 2.0 | M20 x 2.5 | M24 x 3.0 | M27 x 3.0 |
| M | 20 | 25 | 30 | 40 | U | 5 | 5 | 5 | 5 |
| N Max | 38.8 | 42.8 | 43.8 | 57.5 | V | 38 | 48 | 58 | 65 |
| N Min | 32.3 | 34.8 | 39.8 | 47.5 |
