High Speed Wedge Thru-Hole Power Chuck 2, 3- and 4-jaw
features:
Powerful Clamping force
High Precision and Super Wear resistance
Suitable for High Speed turning process

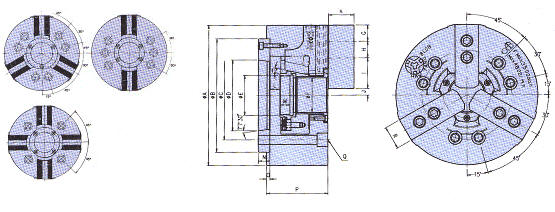

High Speed Wedge Thru Hole      High speed wedge thru hole diagram


Model
A
B
C
D
E
F
G
H
I
J min
J max
K
L min
L max
M
N
O
P
Q
R
BL04B 4 3.3 3.0 A2-3 M32x1.5 1.0 0.5 0.6 1.1 0.2 0.1 0.9 0.04 -0.30 0.7 0.5 0.2 2.4 M10 0.9
BL05B 5 4.3 3.3 A2-4 M40x1.5 1.3 0.6 0.7 1.1 0.3 0.2 1.2 0.04 -0.30 0.8 0.5 0.2 2.4 M10 0.9
BL06B 6.7 5.5 4.1 A2-5 M55x2.0 1.8 0.6 0.8 1.5 0.3 0.2 1.4 0.40 -0.04 0.8 0.6 0.2 3.2 M10 1.3
BL08B 8 6.7 5.3 A2-6 M60x2.0 2.1 0.9 1.0 1.8 0.4 0.2 1.5 0.60 -0.08 0.8 0.7 0.2 3.6 M12 1.4
BL10B 10 8.7 6.7 A2-8 M85-2.0 3.0 1.2 1.2 2.0 0.6 0.5 1.7 0.30 -0.40 1.0 0.7 0.2 3.9 M16 1.6
BL12B 12 8.7 6.7 A2-8 M100x2.0 3.7 1.5 1.2 2.4 0.9 0.7 2.0 0.30 -0.60 1.1 0.7 0.2 4.3 M16

Model		 Thru-Hole Dia
(in)		 Stroke
(in)		 Jaw Stroke
(in)		 RPM Weight
(lbs)
BL04B 1.02 0.39 0.17 8000 8
BL05B 1.30 0.39 0.17 7000 15
BL06B 1.65 0.47 0.20 6000 28
BL08B 2.05 0.63 0.27 4700 50
BL10B 2.95 0.75 0.31 4200 78
BL12B 3.58 0.90 0.39 3200 136
