Coupled with rotating cylinder which reduces cost and
makes assembly
easier, Jaws actuate simultaneously. No need to measure centerline of work
piece.
|
FEATURES: Made of highly durable cast steel & precision processed, excellent durability Can be from 2 to 8 jaws, long jaw stroke Saves labor and time Superior clamping force
|

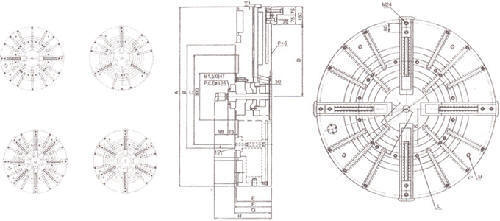

| A | B | C | D | E | F | G | H | I | J | K | L | M | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L35 | 35½ | 20.470 | 18.251 | 11.811 | - | 9.055 | 9.370 | 15.866 | - | 8.858 | 11.023 | 6-M24 | M24 |
| L40 | 39 | 20.470 | 18.251 | 13.780 | - | 9.055 | 9.370 | 15.866 | - | 8.858 | 11.023 | 6-M24 | M24 |
| L45 | 45 | 20.470 | 18.251 | 16.732 | - | 9.055 | 9.370 | 15.866 | - | 8.858 | 11.023 | 6-M24 | M24 |
| L50 | 49 | 33.858 | 31.496 | 18.700 | 11.417 | 11.811 | 12.125 | 18.622 | 8.858 | 29.528 | 11.614 | 6-M24 | M30 |
| L55 | 55 | 33.858 | 31.496 | 21.653 | 11.417 | 11.811 | 12.125 | 18.622 | 8.858 | 31.496 | 11.614 | 6-M24 | M30 |
| L60 | 59 | 33.858 | 31.496 | 23.622 | 11.417 | 11.811 | 12.125 | 18.622 | 8.858 | 31.496 | 11.614 | 12-M24 | M30 |
