KCM MICRO SET SEMI-STEEL 3-JAW AND 6-JAW CHUCKS


KCM MICRO-SET 3-JAW CHUCKS

FEATURES:

*Semi-Steel Body
*Scroll and jaws hardened
*Increased life and gripping force


CHUCK
DIAMETER		 CHUCK
NUMBER		 O.D. MIN. O.D. MAX I.D. MIN. I.D. MAX MAX RPM
6" 2063R .125 6 1.875 6.000 3400
8.25" 2083R .250 8.25 2.125 8.593 3100
310010" 2103R .500 10 3.062 11.406 2700
12" 2124R .500 12 3.468 12.390 2200

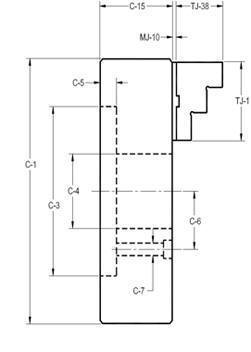

Size Model Weight C-1 C-3 C-4 C-5 C-6 C-7 C-15 MJ-10 TJ-1 TJ-38
6" 2063R 19 6.00 3.125 1.520 0.688 2.671 0.281 2.350 0.100 2.531 1.496
8" 2083R 50 8.250 4.750 2.257 0.750 3.750 0.406 3.125 0.175 3.562 2.008
10" 2103R 70 10.00 6.375 2.810 0.803 2.188 0.469 3.500 0.165 3.750 2.480
12" 2124R 116 12.00 7.906 3.257 0.803 2.625 0.531 4.000 0.165 4.375 2.500






MICRO SET 6-JAW CHUCKS

FEATURES:

*Semi-Steel Body
*Scroll and jaws hardened
*Increased life and gripping force




CHUCK
DIAMETER		 CHUCK
NUMBER		 O.D. MIN. O.D. MAX I.D. MIN. I.D. MAX MAX RPM
6" 2066R .500 5.400 2.300 5.75 2500
8.25" 2086R .500 8.25 2.570 7.828 2200
310010" 2106R .684 10 3.860 10.281 1900
12" 2126R .843 12 3.796 12.250 1500

Size Model Weight C-1 C-3 C-4 C-5 C-6 C-7 C-15 MJ-10 TJ-1 TJ-38
6" 2066R 22 6.00 3.125 1.520 0.688 2.671 0.281 2.350 0.100 2.531 1.496
8" 2086R 53 8.250 4.750 2.257 0.750 3.750 0.406 3.125 0.175 3.562 2.008
10" 2106R 72 10.00 6.375 2.810 0.800 2.188 0.469 3.500 0.165 3.750 2.480
12" 2126R 146 12.00 7.906 3.257 0.875 2.625 0.531 4.000 0.165 4.375 2.500
