Quick Change Chuck Jaws

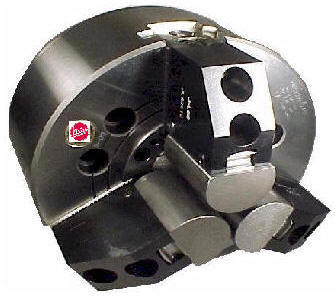

ATLAS PRECISION WEDGE TYPE POWER CHUCKS AND J-LOC QUICK CHANGE CHUCK JAWS!

CHANGE JAW INSERTS IN 10 SECONDS OR LESS WITH .0005 REPEATABLE ACCURACY!
YOU CAN VIRTUALLY ELIMINATE REBORING OF JAWS FOR REPEAT JOBS!!!!!!

AN UNBEATABLE COMBINATION!

PACKAGE INCLUDES:

ATLAS DRAW TUBE ACTUATED POWER CHUCK
3 J-LOC C STYLE MASTER JAWS
3 J-LOC MILD STEEL INSERTS
SPINDLE MOUNTING PLATE
SEMI-FINISHED DRAW NUT (NOT THREADED FOR DRAW TUBE)
DRAW NUT WRENCH
3 STANDARD SOFT TOP JAWS
J-NUTS

FEATURES:

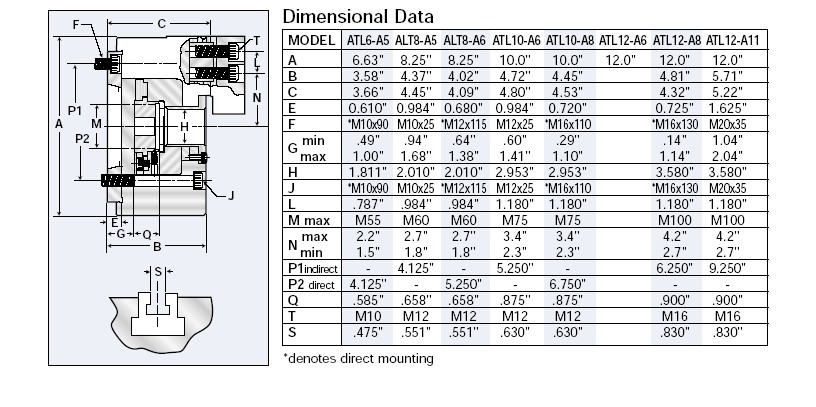

ATL SERIES 8"- 24" DIAMETER CHUCKS

DIRECT REPLACEMENT CHUCK FOR MOST JAPANESE POWER CHUCKS (KITAGAWA AND OTHER JAPANESE CHUCKS
EASY RETROFIT
INTERCHANGEABLE TOP TOOLING (1.5MM X 60 DEG. SERRATIONS)
HIGH SPEED
FULL ONE YEAR WARRANTY PARTS AND LABOR
HARDENED JAW WAYS, MASTER JAWS AND INTERNAL PARTS
LARGE THRU-HOLES, PLUS QUICK CHANGE COVER PLATE FOR CLOSED CENTER APPLICATIONS
ACCURACY PLUS/MINUS .0005" REPEATABILITY

J-LOC MASTER JAW DIMENSIONS


J-LOC NUMBER	BOLT SIZE	F	G	W	INSERT	H	L
8B61C	12MM	.985	.551	1.500	33L	2.500	2.500
JL1061C	12MM	1.181	.630	1.75	44L	2.750	3.000
JL12E61C	14MM	1.181	.709	1.750	44L	2.750	3.000
JL12D61C	16MM	1.181	.826	1.75	44L	2.785	3.000
JL15A61C	20MM	1.693	.866	2.50	77L	4.000	4.125
*JL2163C	20MM	2.362	.984	2.50	77L	4.000	4.500
* 3MM SERRATIONS

CLICK HERE FOR AN ANIMATED EXAMPLE OF THE J-LOC QUICK CHANGE SYSTEM

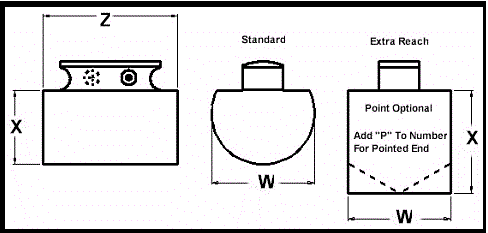

J-LOC QUICK CHANGE INSERT DIMENSIONS


INSERT NUMBER	X	W	Z	MATERIAL
JL33L (STANDARD)	1.188	1.500	2.375	MILD STEEL
JL33LX2	2.000	1.500	2.375	MILD STEEL
JL44L (STANDARD)	1.438	2.000	2.625	MILD STEEL
JL44LX2.5	2.500	2.000	2.625	MILD STEEL
JL44LX3	3.000	2.000	1.625	MILD STEEL
JL77L (STANDARD)	1.937	2.750	3.750	MILD STEEL
JL77LX3.2	3.188	2.500	3.750	MILD STEEL
JL77LX4.2	4.188	2.500	3.750	MILD STEEL
JL77LX5.2	5.188	2.500	3.750	MILD STEEL

*PACKAGE PRICING*
CHUCK NUMBER AND SPINDLE MOUNT	CHUCK DIAMETER	PACKAGE PRICE
ATL8-A5	8 INCH	$2,182.35 USD
ATL8-A6	8 INCH	$2,182.35 USD

ATL10-A6	10 INCH	$2,698.29 USD
ATL10-A8	10 INCH	$2,698.29 USD

ATL12-A6	12 INCH	$3,044.61 USD
ATL12-A8	12 INCH	$3,044.61 USD
ATL12-A11	12 INCH	$3,044.61 USD

ATL15-A8	15 INCH	$6,583.50 USD
ATL15-A11	15 INCH	$6,583.50 USD

ATL18-A11	18 INCH	$9,325.20 USD

ATL21-A11	21 INCH	$12,556.50 USD
ATL21-A15	21 INCH	$12,556.50 USD

WWW.ECOLLETCHUCKS.COM	WEBSITE DEVOTED ENTIRELY TO COLLETS AND COLLET CHUCKS
WWW.E-JAWS.COM	WEBSITE DEVOTED ENTIRELY TO CHUCK JAWS OF ALL TYPES.
WWW.FINDCENTERS.COM	WEBSITE DEVOTED ENTIRELY TO LIVE AND DEAD CENTERS
WWW.J-LOC.COM	QUICK CHANGE CHUCK JAWS, QUICK CHANGE MILL VISE JAWS AND EXPANDING MANDREL COLLETS
WWW.LATHE-CHUCKS.COM	WEBSITE DEVOTED ENTIRELY TO FINDING ACCURATE LATHE CHUCK INFORMATION.
WWW.MILLVISES.COM	WEBSITE DEVOTED ENTIRELY TO CHOOSING THE CORRECT PRECISION MILL VISE.
WWW.WORKHOLDING.COM	MANUAL AND POWER CHUCKS, COLLET CHUCKS, VISES, TOOLING COLUMNS AND MORE!
